Uploading Playwright Results with Auto Test Case Creation

This guide walks through the workflow for a QA engineer who has automated manual test cases from the Bistro Delivery project using Playwright and wants to report results back to QA Sphere — including automatically creating test cases in QA Sphere for any Playwright tests that don't yet have a matching case.

When to use --create-tcases​

By default, playwright-json-upload requires every test in the report to reference an existing QA Sphere test case (via an annotation or a BD-XXX marker in the test name). If any test lacks a valid reference, the upload fails.

The --create-tcases flag changes this behavior: instead of failing, the CLI creates new test cases in QA Sphere for any unmatched tests and includes them in the test run. A mapping file is generated so you can update your tests with the assigned codes going forward.

This is useful when:

  • You're starting fresh and have Playwright tests that don't reference QA Sphere cases yet
  • You've added new tests and want them tracked in QA Sphere without manually creating cases first

Prerequisites​

  • Node.js 18+
  • QAS CLI installed: npm install -g qas-cli
  • Playwright project with JSON reporter configured
  • A QA Sphere account with the Bistro Delivery project (project code: BD)
  • A QA Sphere API token

Step 1: Configure environment​

Create a .qaspherecli file in your project root (or export as environment variables):

QAS_TOKEN=your_api_token_here
QAS_URL=https://qas.eu1.qasphere.com

Step 2: Configure Playwright JSON reporter​

In your playwright.config.ts, enable the JSON reporter:

import { defineConfig } from '@playwright/test'

export default defineConfig({
  reporter: [
    ['list'],
    ['json', { outputFile: 'test-results/results.json' }]
  ],
})

If your Playwright tests already reference QA Sphere test cases, annotate them so the CLI can match them precisely. This is the recommended approach for existing test cases:

test(
  'Add item to cart',
  {
    annotation: {
      type: 'test case',
      description: 'https://qas.eu1.qasphere.com/project/BD/tcase/002',
    },
  },
  async ({ page }) => {
    // test code
  }
)

Alternatively, include the BD-XXX marker in the test name:

test('BD-002: Add item to cart', async ({ page }) => {
  // test code
})

Tests without an annotation or marker are the ones that will be auto-created when using --create-tcases.

Step 4: Run Playwright tests​

npx playwright test

This generates test-results/results.json.

Step 5: Upload results with --create-tcases​

qasphere playwright-json-upload test-results/results.json --project-code BD --create-tcases

The CLI will:

  1. Create a new test run in the BD project (named automatically, e.g. Automated test run - Apr 22, 2025, 10:34:00 AM)
  2. Match tests that have valid BD-XXX markers or annotations to existing test cases
  3. Create new QA Sphere test cases for any tests without a valid marker
  4. Upload pass/fail status for all tests

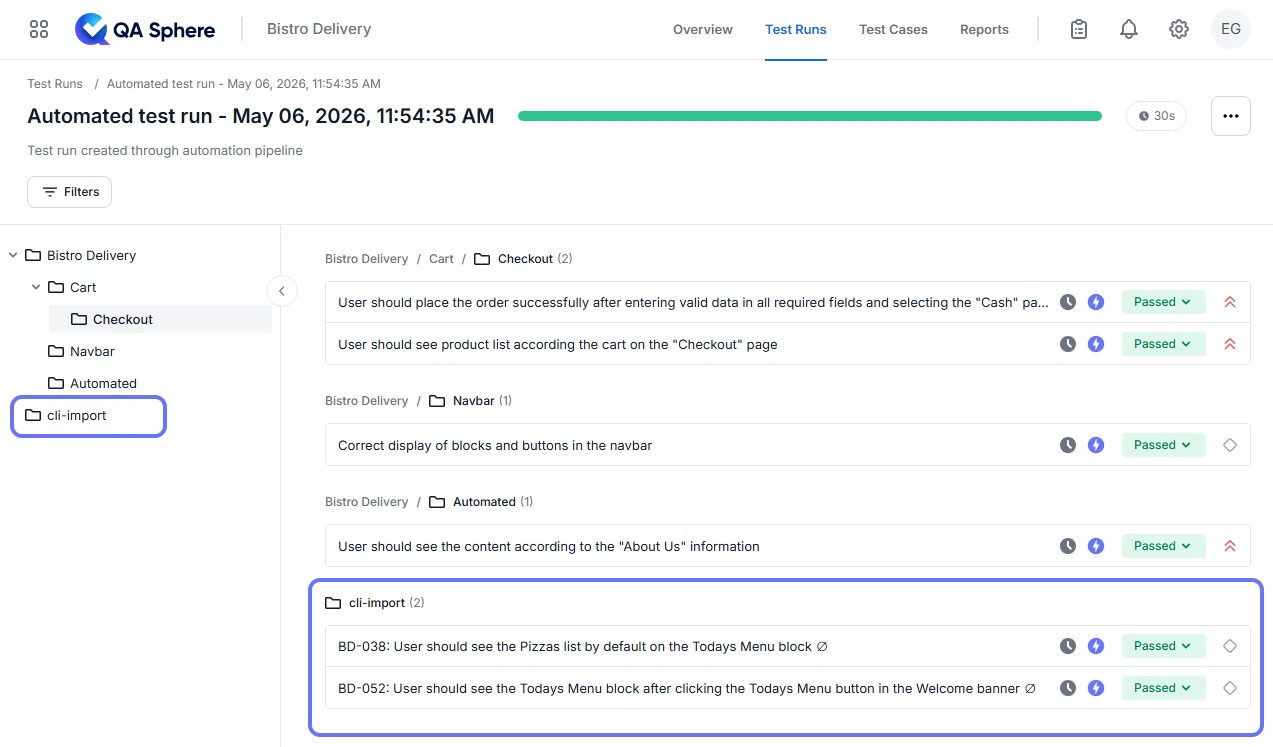

Any test cases that were not found in QA Sphere will be automatically created and placed in the cli-import folder in your project.

Newly created test cases placed in the cli-import folder in QA Sphere

To give the run a meaningful name, add --run-name:

qasphere playwright-json-upload test-results/results.json --project-code BD --run-name "Bistro E2E - {YYYY}-{MM}-{DD}" --create-tcases

Step 6: Check the mapping file​

After the upload, the CLI generates a mapping file in your working directory, for example:

qasphere-automapping-20250422-103400.txt

It lists the QA Sphere sequence numbers assigned to each newly created test case:

"Verify checkout total" → BD-025
"Validate empty cart message" → BD-026

Update your Playwright tests to include these markers so future uploads match the existing cases instead of creating duplicates:

test('BD-025: Verify checkout total', async ({ page }) => {
  // test code
})

Quick reference​

GoalCommand
Upload to a new run, auto-create missing test casesqasphere playwright-json-upload results.json --project-code BD --create-tcases
Same, with a custom run nameqasphere playwright-json-upload results.json --project-code BD --run-name "Sprint 12" --create-tcases
Upload to an existing run (no auto-creation needed)qasphere playwright-json-upload results.json -r https://qas.eu1.qasphere.com/project/BD/run/23
Upload with screenshots attachedqasphere playwright-json-upload results.json --project-code BD --create-tcases --attachments
Suppress unmatched test warnings (without creating cases)qasphere playwright-json-upload results.json --project-code BD --ignore-unmatched

Notes​

  • --create-tcases only works when creating a new test run (i.e., without --run-url). It cannot create test cases when uploading to an existing run.
  • Run the mapping file update step before your next CI run to avoid creating duplicate test cases.
  • If you want to silence unmatched test warnings without auto-creating cases, use --ignore-unmatched instead.
